New WMS Class Diagram
Posted by ezra | Filed under Uncategorized
WMS class diagram
Extract from WMS vs 2008 solution
WMS Class Diagram
Edited…
Modified Activity Diagram
Posted by ezra | Filed under Uncategorized
Check In

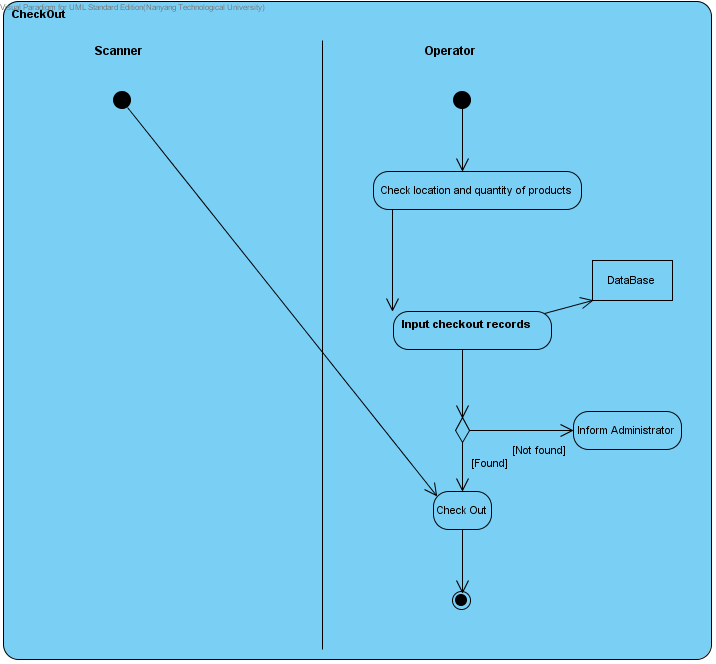

Check Out
Create New Order
Communication Diagram(so-called~~~) for Demo
Posted by bailu | Filed under Uncategorized
That’s only so far what we do.
Sample Reports demo
Posted by ezra | Filed under Uncategorized
I have created and demo the reports that will be generated from database.
Customer Report
Customer Report
Customer Order
Customer Order
Warehouse Report
Warehosue Report
Shipment Report
Bill Transaction Report
Bill Report
data requirments
Posted by bailu | Filed under Uncategorized
shipment receipt
list of shipment ids
list of each check in time
list of the customers
list of the delivery companies for each shipment
list of the whether confirmed
that’s all
component diagram for login/out checkin/out
Posted by bailu | Filed under Uncategorized
Data requirements
Posted by deepika | Filed under Uncategorized
Shipment Creation( to display the shipment records for the particular customer)
list of shipment id
list of customer id( the customer details will come under customer id)
number of packages ( in case of multiple check ins)
date and time of check-in
date + time of checkout
staff in charge of the shipment ( staff who will check in and check out the shipment. same staff will check in and check out the package)
company delivering the package. e.g. DHL/FedEx/COSCO/MAERSK/etc
barcode id of the shipment package( for ref of the package)
Add Warehouse( adding the available empty space in each warehouse)
List of warehouse ids
list of rack ids
list of rack sections
list of free storage ids ( each warehouse would have only one main free storage space)
–> floor area
–> xsector
–> ysectors
Update Warehouse ( when the amount of available space in each of the warehouse changes, there would be a need for update)
List of warehouse ids
list of rack ids
list of rack sections
list of free storage ids ( each warehouse would have only one main free storage space)
–> floor area
–> xsector
–> ysectors
Sequence Diagrams
Posted by deepika | Filed under Uncategorized
Sequence Diagram
Posted by kavi | Filed under Uncategorized
map
Posted by bailu | Filed under Uncategorized
